LCC 24F closure, lightgrip Incl. two 7 hole grommet
5062828

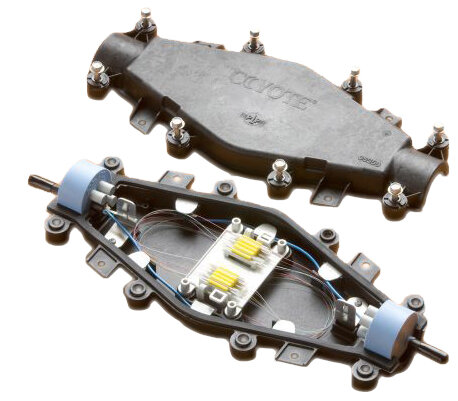

The Coyote LCC (Low Count Closure) is a compact closure that utililizes the COYOTE silicone grommet system and LITE-GRIP splice platform, is designed making this rugged closure the ideal economical solution for new drop cable installations and critical repair situations. Offers a cost-effective solution for quick restoration of damaged or cut fiber service drops Utilizes the LITE-GRIP splice block system which permits single fusion, mass fusion, mechanical, PLC splitters, or a combination of all within one closure.
Splice Capacity (Maximum) – Single Fusion, Mass Fusion: 24, 72
Cable Ports: 2
Cable Diameters: 2.4 - 25.4 mm and flat drop
Configuration: In-Line or Butt
Application: Direct Bury, Below Grade, Pole/Wall, Aerial
Ingress Protection: In accordance to Telcordia® GR-771-CORE, Buried, Underground, IP-68
Size: 356 x 165 x 64 mm
2 silicone grommets for cables 1 x 11-15mm + 6 x 3-6mm allows for re-entry and re-use. Other grommet dimensions are available
LCC halves are constructed of a UV-stabilized material
Flexible grommet sealing technology supports a wide range of flat and round cable profiles
Flat shape allows for mounting in small areas
Flame-retardant and ribbon kits available
