2F SM G657A1 Microcable CLT Black HDPE OD 3.9mm, 6km/drum
| Product code | 4989457 | |
|---|---|---|
| Sales unit | Meter | |
| ETIM-Class | EC000034 |
-
Product specifications

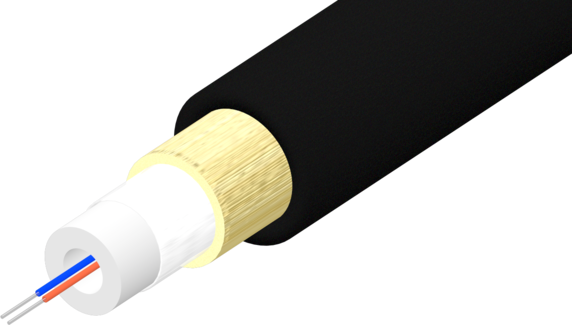

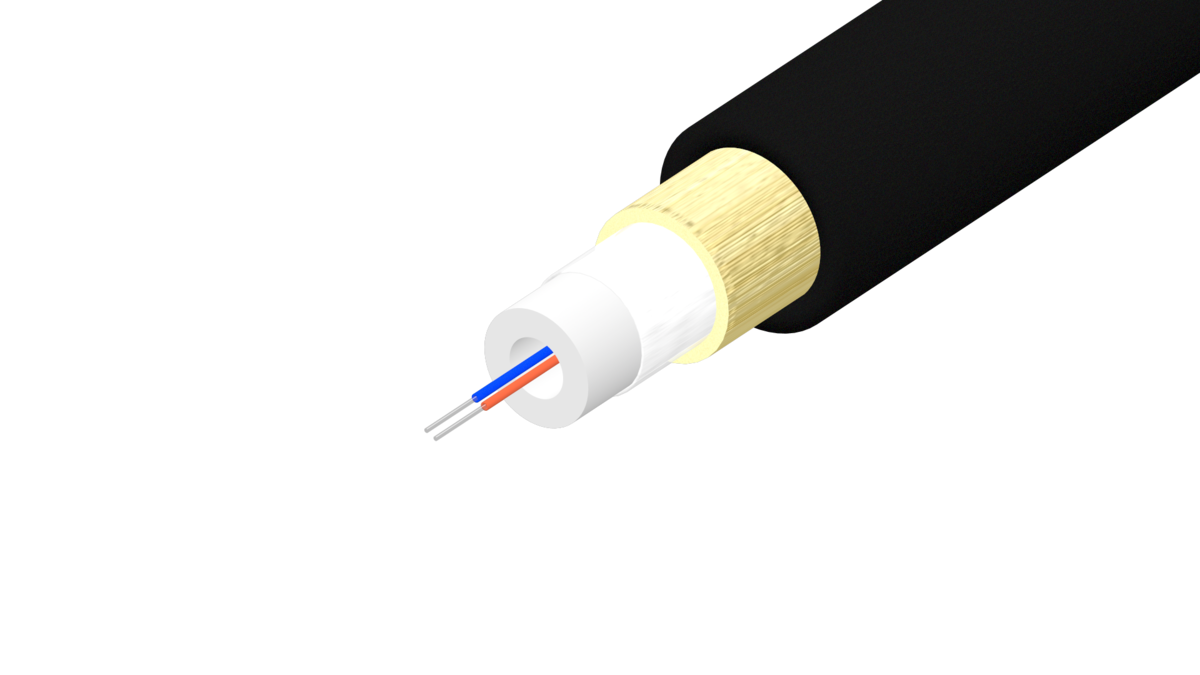

2F SM G657A1 Micro cable typically used in outdoor microduct installation applications. The cables are suitable for air-blown installation. Cable parameters such as cable diameter, stiffness and sheath friction are optimized for best installation performance. The cables are based on a central loose tube construction (CLT).
-
Measurements
Length 1,000 mm Height 3.9 mm Width 3.9 mm Weight 12 g -
Documents
Data Sheets
-
Physical Characteristics
-
Mechanical & Environmental Characteristics
-
Other variants
Product number Product name Fibre Count Cable Diameter Fibre Colour Sequence CompareProduct number 4989457Product name 2F SM G657A1 Microcable CLT Black HDPE OD 3.9mm, 6km/drumFibre Count 2Cable Diameter 3.9 mmFibre Colour Sequence EIA/TIA-598AProduct number 4989467Product name 4F SM G657A1 Microcable CLT Black HDPE OD 3.9mm, 6km/drumFibre Count 4Cable Diameter 3.9 mmFibre Colour Sequence EIA/TIA-598AProduct number 4989477Product name 12F SM G657A1 Microcable CLT Black HDPE OD 3.8mm, 6km/drumFibre Count 12Cable Diameter 3.9 mmFibre Colour Sequence EIA/TIA-598AProduct number 4989447Product name 12F S12 G657A1 Microcable CLT Black HDPE OD 3.9mm, 6km/drumFibre Count 12Cable Diameter 3.9 mmFibre Colour Sequence S12 & EIA/TIA-598A
