144F G657A1 MicroDuct cabl MLT Black PA OD 6.7mm 4km/d

Product code	4999284
Sales unit	Meter
ETIM-Class	EC000034

Compare

Product specifications

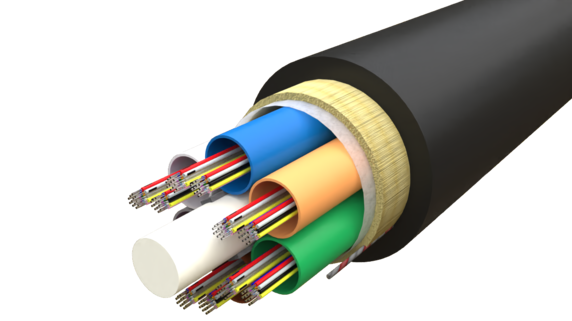

Micro cables typically used in outdoor microduct installation applications. The cables are suitable for air-blown installation. Cable parameters such as cable diameter, stiffness and sheath friction are optimized for best installation performance. The cable is based on a multi loose tube construction with SZ design around a central strength member of fiberglass-reinforced plastic (FRP) which facilitates mid-span access.

Measurements

Length	1,000 mm
Height	6.7 mm
Width	6.7 mm
Weight	40 g

Documents

Data Sheets

4999284-EN-FDV.pdf

Physical Characteristics

Fibre Count	144
Cable Construction	Multi Loose Tube (MLT)
Fibre Type	ITU-T G.657 A1
Fibres per Tube	24
Fibre Colour Sequence	EIA/TIA-598A
Tube Size	2 mm
Central Strength Member	FRP
No of Tubes	6
Tube Colour Sequence	EIA/TIA-598A
Outer Sheath Material	PA (Polyamid)
Colour of Cable Sheath	Black
Nominal Sheath Thickness	0.3 mm
No of Ripcords Below Outer Sheath	1
Cable Diameter	6.7 mm
Cable Diameter Tolerance	+/- 0.3 mm
Nominal Cable Weight	40 kg/km

Mechanical & Environmental Characteristics

Halogen Free	Yes
UV Proof	Yes
Metal free	Yes
Tensile Strength (N) IEC-60794-1-21-E1	700 N
Crush Resistance - IEC- 60794-1-21-E3	500 N/10cm
Impact Strength (Nm) IEC-60794-1-21-E4	50
Torsion IEC-60794-1-21-E7	± 180°
Min. Bend Radius (During Installation) IEC-60794-1-21-E11	20 x d
Min. Bend Radius (After Installation) IEC-60794-1-21-E11	10 x d
Water Penetration TestIEC-60794-1-22-F5	1m head, 3m samples, 24 hrs.
Drip Test IEC-60794-1-21-E14	30 cm, 70°C, 24 hr
Temperature Performance Installation IEC-60794-1-22-F1	-15°c till +50°c
Temperature Performance Operation IEC-60794-1-22-F1	-40°c til +70°c
Temperature Performance Storage IEC-60794-1-22-F1	-40°c til +70°c

Other variants

Product number Product name Fibre Count Cable Diameter Fibre Colour Sequence Compare

Product number 4966677

Product name 12F G657A1 Microduct cable MLT Black HDPE OD 5.7mm 4km/dr

Fibre Count 12

Cable Diameter 5.7 mm

Fibre Colour Sequence S12 & EIA/TIA-598A

Product number 4976707

Product name 12F S12 G657A1 MicroDuct cable MLT Black HDPE OD 5.7mm 4km/d

Fibre Count 12

Cable Diameter 5.7 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 87702012

Product name 12F G657A1 Micro Cable MLT Black HDPE OD 5mm 4km/dr

Fibre Count 12

Cable Diameter 5 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4966687

Product name 24F G657A1 Microduct cable MLT Black HDPE OD 5.7mm 4km/dr

Fibre Count 24

Cable Diameter 5.7 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 87702024

Product name 24F G657A1 Micro Cable MLT Black HDPE OD 5mm 4km/dr

Fibre Count 24

Cable Diameter 5 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4966697

Product name 48F G657A1 Microduct cable MLT Black HDPE OD 5.7mm 4km/dr

Fibre Count 48

Cable Diameter 5.7 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 87702048

Product name 48F G657A1 Micro Cable MLT Black HDPE OD 5mm 4km/dr

Fibre Count 48

Cable Diameter 5 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4966777

Product name 72F G657A1 Microduct cable MLT Black HDPE OD 5.7mm 4km/dr

Fibre Count 72

Cable Diameter 5.7 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4966787

Product name 96F G657A1 Microduct cable MLT Black HDPE OD 6.5mm 4km/dr

Fibre Count 96

Cable Diameter 6.5 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4968884

Product name 96F G657A1 Micro Lite cable MLT Black HDPE OD 6.0mm EIA/TIA 4km/dr

Fibre Count 96

Cable Diameter 6 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 87702096

Product name 96F G657A1 Micro Cable MLT Black HDPE OD 5.9mm 4km/dr

Fibre Count 96

Cable Diameter 5.9 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4999284

Product name 144F G657A1 MicroDuct cabl MLT Black PA OD 6.7mm 4km/d

Fibre Count 144

Cable Diameter 6.7 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 87702144

Product name 144F G657A1 Micro Cable MLT Black HDPE OD 6.4mm 4km/dr

Fibre Count 144

Cable Diameter 6.4 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4999294

Product name 192F G657A1 MicroDuct cable MLT Black PA OD 8.0mm 4km/d

Fibre Count 192

Cable Diameter 8 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4966887

Product name 288F G657A1 Microduct cable MLT Black HDPE OD 10.2mm 2km/dr

Fibre Count 288

Cable Diameter 10.2 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 87702288

Product name 288F G657A1 Micro Cable MLT Black HDPE OD 8.9mm 4km/dr

Fibre Count 288

Cable Diameter 8.9 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4966397

Product name 432F G652D Microduct cable MLT Black HDPE OD 12.5mm 2km/d

Fibre Count 432

Cable Diameter 12.5 mm

Fibre Colour Sequence EIA/TIA-598A
