288F G657A1 200µm Micro Cable MLT Black HDPE OD 8.1mm 4km/d

Product code	87703288
Sales unit	Meter
ETIM-Class	EC000034

Compare

Product specifications

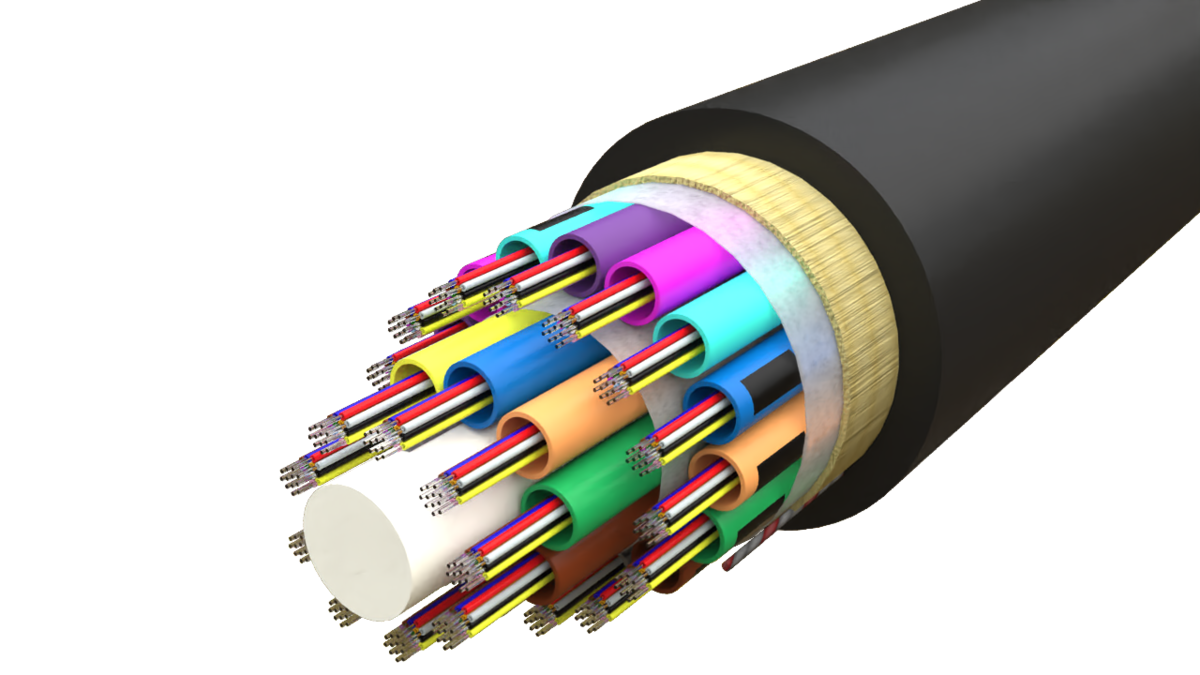

Micro cables typically used in outdoor microduct installation applications. The cables are suitable for air-blown installation. Cable parameters such as cable diameter, stiffness and sheath friction are optimized for best installation performance. The cable is based on a slim multi loose tube construction with SZ design around a central strength member of fiberglass-reinforced plastic (FRP) which facilitates mid-span access.

Measurements

Length	1,000 mm
Height	8.1 mm
Width	8.1 mm
Weight	60 g

Documents

Data Sheets

87703288-EN-FDV.pdf

Physical Characteristics

Fibre Count	288
Cable Construction	Multi Loose Tube (MLT)
Fibre Type	ITU-T G.657 A1 200um
Fibres per Tube	12
Fibre Colour Sequence	EIA/TIA-598A
Central Strength Member	FRP
No of Tubes	Layer 1: 9 Layer 2: 15
Tube Colour Sequence	EIA/TIA-598A
Outer Sheath Material	HDPE (High Density Polyethene)
Colour of Cable Sheath	Black
No of Ripcords Below Outer Sheath	1
Cable Diameter	8.1 mm
Cable Diameter Tolerance	+/- 0.3mm
Nominal Cable Weight	60 kg/km

Mechanical & Environmental Characteristics

Halogen Free	Yes
UV Proof	Yes
Metal free	Yes
Tensile Strength (N) IEC-60794-1-21-E1	1,000 N
Crush Resistance - IEC- 60794-1-21-E3	1,000 N/10cm
Impact Strength (Nm) IEC-60794-1-21-E4	1
Torsion IEC-60794-1-21-E7	± 360 °
Min. Bend Radius (During Installation) IEC-60794-1-21-E11	20 x d
Min. Bend Radius (After Installation) IEC-60794-1-21-E11	20 x d
Water Penetration TestIEC-60794-1-22-F5	1m head, 3m samples, 24 hrs.
Drip Test IEC-60794-1-21-E14	30 cm, 70°C, 24 hr
Temperature Performance Installation IEC-60794-1-22-F1	-5 °C to + 50 °C
Temperature Performance Operation IEC-60794-1-22-F1	-20 °C to + 70 °C
Temperature Performance Storage IEC-60794-1-22-F1	-20 °C to + 70 °C

Other variants

Product number Product name Fibre Count Cable Diameter Fibre Colour Sequence Compare

Product number 4982817

Product name 96F G657A1 200µm Microcable MLT Black PA OD 5.9mm 4km/d

Fibre Count 96

Cable Diameter 5.9 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4985667

Product name 144F G657A1 200µm Microcable MLT Black PA OD 5.7mm 4km/d

Fibre Count 144

Cable Diameter 5.7 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4985677

Product name 192F G657A1 200µm Microcable MLT Black PA OD 6.7mm 4km/d

Fibre Count 192

Cable Diameter 6.7 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4985687

Product name 240F G657A1 200µm Microcable MLT Black PA OD 7.7mm 4km/d

Fibre Count 240

Cable Diameter 7.7 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4985697

Product name 288F G657A1 200µm Microcable MLT Black HDPE OD 8.0mm 4km/d

Fibre Count 288

Cable Diameter 8 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 87703288

Product name 288F G657A1 200µm Micro Cable MLT Black HDPE OD 8.1mm 4km/d

Fibre Count 288

Cable Diameter 8.1 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4982837

Product name 432F G657A1 200µm Microcable MLT Black PA OD 8.8mm 4km/d

Fibre Count 432

Cable Diameter 8.8 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4982857

Product name 576F G657A1 200µm Microcable MLT Black PA OD 10.6mm 4km/d

Fibre Count 576

Cable Diameter 10.6 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 87703576

Product name 576F G657A1 200µm Micro Cable MLT Black HDPE OD 10.2mm 4km/d

Fibre Count 576

Cable Diameter 10.2 mm

Fibre Colour Sequence EIA/TIA-598A
