2F SM G657A1 Microcable CLT Orange PBT OD 2,0mm 2100m/dr

Product code	5041624
Count	1
Sales unit	Meter
ETIM-Class	EC000034

Compare

Product specifications

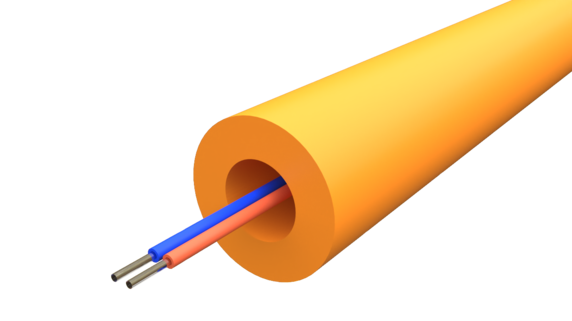

2F SM G657A1 Micro cable typically used in outdoor microduct installation applications. The cables are suitable for air-blown installation. Cable parameters such as cable diameter, stiffness and sheath friction are optimized for best installation performance. The cables are based on a central loose tube construction (CLT).

Length	1,000 mm
Height	2 mm
Width	2 mm
Weight	7 g

Documents

Data Sheets

5041624-EN-FDV.pdf

Physical Characteristics

Fibre Count	2

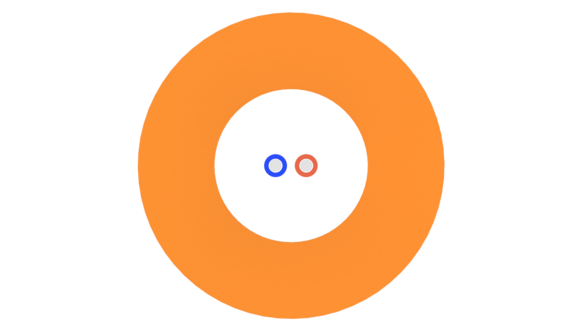

Cable Construction	Central Loose Tube (CLT)
Fibre Type	ITU-T G.657 A1
Fibre Colour Sequence	EIA/TIA-598A
Tube Colour Sequence	EIA/TIA-598A
Outer Sheath Material	PBT
Colour of Cable Sheath	Orange
Cable Diameter	2 mm
Cable Diameter Tolerance	+/- 0.1 mm
Nominal Cable Weight	3.3

Mechanical & Environmental Characteristics

Halogen Free	Yes
Metal free	Yes
Tensile Strength (N) IEC-60794-1-21-E1	40 N
Crush Resistance - IEC- 60794-1-21-E3	100 N/10cm
Torsion IEC-60794-1-21-E7	± 180°
Min. Bend Radius (During Installation) IEC-60794-1-21-E11	40 mm
Min. Bend Radius (After Installation) IEC-60794-1-21-E11	30 mm
Water Penetration TestIEC-60794-1-22-F5	1m head, 3m samples, 24 hrs.
Drip Test IEC-60794-1-21-E14	30 cm, 70°C, 24 hr
Temperature Performance Installation IEC-60794-1-22-F1	-15°c till +50°c
Temperature Performance Operation IEC-60794-1-22-F1	-20°c till +70°c
Temperature Performance Storage IEC-60794-1-22-F1	-20°c till +70°c

Other variants

Product number Product name Fibre Count Cable Diameter Fibre Colour Sequence Compare

Product number 5041624

Product name 2F SM G657A1 Microcable CLT Orange PBT OD 2,0mm 2100m/dr

Fibre Count 2

Cable Diameter 2 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 5041625

Product name 4F SM G657A1 Microcable CLT Orange PBT OD 2,0mm 2100m/dr

Fibre Count 4

Cable Diameter 2 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 5041627

Product name 12F SM G657A1 Microcable CLT Orange PBT OD 2,5mm 2100m/dr

Fibre Count 12

Cable Diameter 2.5 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 5041628

Product name 24F SM G657A1 Microcable CLT Orange PBT OD 3,2mm 2100m/dr

Fibre Count 24

Cable Diameter 3.2 mm

Fibre Colour Sequence EIA/TIA-598A
