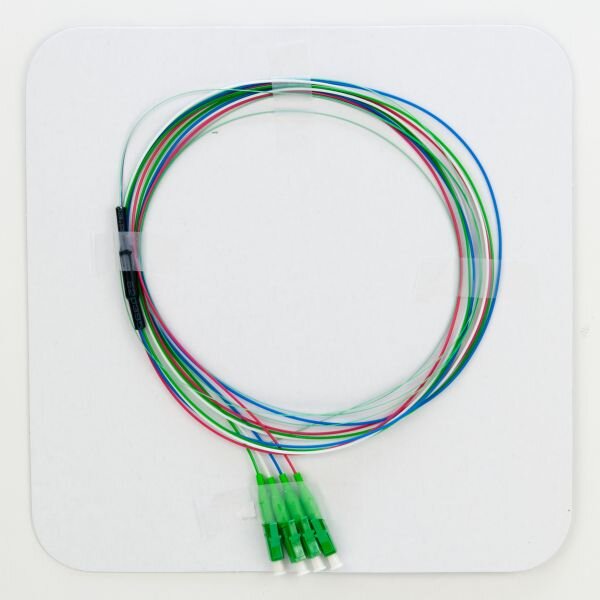

Fanout SM 4xLC/APC G657A 2m G657A 0.8+1.2m=2.0m S12 code
| Product code | 5068837 | |
|---|---|---|
| Sales unit | Pcs | |
| ETIM-Class | EC000748 |
-
Product specifications
Fibreoptic ribbon fanouts, singlemode G652A1 with pre-terminated connector. To be used for splicing on a fibreoptic ribbon cable. Halogen-free according to EN 60754-1/2 and flame retardant according to IEC 60332-2-2. Meets the requirements of IEC 61300, EN186000-1, EIA/TIA-455 and TELCORDIA GR-326-CORE/GR-63. ID marked with a unique serial number for full traceability to component-level. Each package comes with individual measurement protocols.
-
Measurements
Length 265 mm Height 15 mm Width 210 mm Weight 41 g -
Documents
Data Sheets
-
Technical Specifications - Connectors
Max insertion loss per connector (APC) 0.2 dB Max Optical Return Loss for APC connector -65 dB Radius of Curvature APC 5-12mm Max Vertex Offset 50 µm Fibre Protrusion (nm) 0 +/- 50nm -
Technical Specifications - Fanouts
-
Other variants
Product number Product name Connector Type Fibre Count Fibre Colour Sequence CompareProduct number 5068826Product name Fanout SM 4xSC/UPC-APC-UPC-APC G657A 0.8+1.2m=2.0m S12 codeConnector Type sc/upc & sc/apcFibre Count 4Fibre Colour Sequence S12Product number 5068827Product name Fanout SM 4xSC/UPC-UPC-APC-APC G657A 0.8+1.2m=2.0m S12 codeConnector Type sc/upc & sc/apcFibre Count 4Fibre Colour Sequence S12Product number 5068828Product name Fanout SM 4xSC/UPC G657A 2m G657A 0.8+1.2m=2.0m S12 codeConnector Type SC/UPCFibre Count 4Fibre Colour Sequence S12Product number 5068829Product name Fanout SM 8xSC/UPC G657A 2m G657A 0.8+1.2m=2.0m S12 codeConnector Type SC/UPCFibre Count 8Fibre Colour Sequence S12Product number 5068830Product name Fanout SM 12xSC/UPC G657A 2m G657A 0.8+1.2m=2.0m S12 codeConnector Type SC/UPCFibre Count 12Fibre Colour Sequence S12 & EIA/TIA-598AProduct number 5068831Product name Fanout SM 4xSC/APC G657A 2m G657A 0.8+1.2m=2.0m S12 codeConnector Type SC/APCFibre Count 4Fibre Colour Sequence S12Product number 5068832Product name Fanout SM 8xSC/APC G657A 2m G657A 0.8+1.2m=2.0m S12 codeConnector Type SC/APCFibre Count 8Fibre Colour Sequence S12Product number 5068833Product name Fanout SM 12xSC/APC G657A 2m G657A 0.8+1.2m=2.0m S12 codeConnector Type SC/APCFibre Count 12Fibre Colour Sequence S12 & EIA/TIA-598AProduct number 5068834Product name Fanout SM 4xLC/UPC G657A 2m G657A 0.8+1.2m=2.0m S12 codeConnector Type LC/UPCFibre Count 4Fibre Colour Sequence S12Product number 5068835Product name Fanout SM 8xLC/UPC G657A 2m G657A 0.8+1.2m=2.0m S12 codeConnector Type LC/UPCFibre Count 8Fibre Colour Sequence S12Product number 5068836Product name Fanout SM 12xLC/UPC G657A 2m G657A 0.8+1.2m=2.0m S12 codeConnector Type LC/UPCFibre Count 12Fibre Colour Sequence S12 & EIA/TIA-598AProduct number 5068837Product name Fanout SM 4xLC/APC G657A 2m G657A 0.8+1.2m=2.0m S12 codeConnector Type LC/APCFibre Count 4Fibre Colour Sequence EIA/TIA-598AProduct number 5068838Product name Fanout SM 8xLC/APC G657A 2m G657A 0.8+1.2m=2.0m S12 codeConnector Type LC/APCFibre Count 8Fibre Colour Sequence S12Product number 5068839Product name Fanout SM 12xLC/APC G657A 2m G657A 0.8+1.2m=2.0m S12 codeConnector Type LC/APCFibre Count 12Fibre Colour Sequence S12 & EIA/TIA-598AProduct number 5069977Product name Fanout SM 2xSC/UPC G657A 2m G657A 0.8+1.2m=2m STDConnector Type SC/UPCFibre Count 2Fibre Colour Sequence EIA/TIA-598AProduct number 5069978Product name Fanout SM 2xSC/APC G657A 2m G657A 0.8+1.2m=2.0m STDConnector Type SC/APCFibre Count 2Fibre Colour Sequence EIA/TIA-598A
