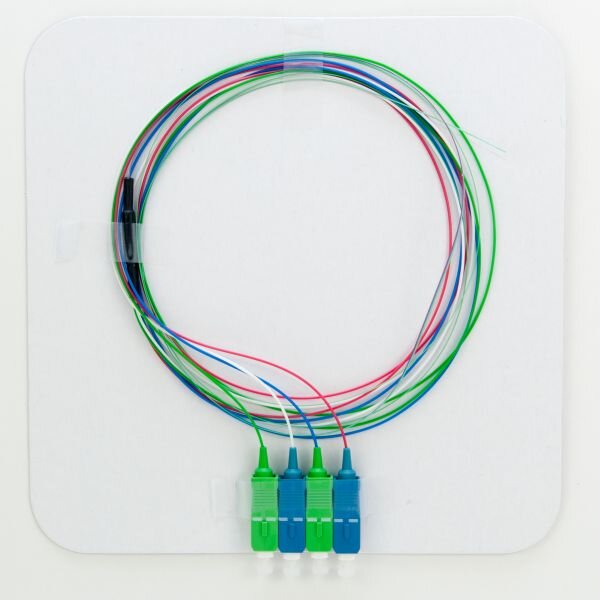

Fanout SM 4xSC/UPC-APC-UPC-APC G657A 0.8+1.2m=2.0m S12 code

Product code	5068826
Sales unit	Pcs
ETIM-Class	EC000748

Compare

Product specifications

Fibreoptic ribbon fanouts, singlemode G652A1 with pre-terminated connector. To be used for splicing on a fibreoptic ribbon cable. Halogen-free according to EN 60754-1/2 and flame retardant according to IEC 60332-2-2. Meets the requirements of IEC 61300, EN186000-1, EIA/TIA-455 and TELCORDIA GR-326-CORE/GR-63. ID marked with a unique serial number for full traceability to component-level. Each package comes with individual measurement protocols.

Measurements

Length	265 mm
Height	15 mm
Width	210 mm
Weight	41 g

Documents

Data Sheets

5068826-FDV.pdf

Technical Specifications - Connectors

Max insertion loss per connector (UPC)	0.2 dB
Max insertion loss per connector (APC)	0.2 dB
Max Optical Return Loss for UPC connector	-55 dB
Max Optical Return Loss for APC connector	-65 dB
Radius of Curvature APC	5-12 mm
Radius of Curvature UPC	7-25 mm
Max Vertex Offset	50 µm
Fibre Protrusion (nm)	0 +/- 50nm

Technical Specifications - Fanouts

Fibre Count	4
Connector Type	sc/upc & sc/apc
Length	2 m
Length of ribbon fibre	1.2 m
Length between connector and fanout	0.8 m
Fibre Colour Sequence	EIA/TIA-598A
Fibre Type	ITU-T G.657 A1
Temperature ranges for Operation	+85°c - -40°c

Other variants

Product number Product name Connector Type Fibre Count Fibre Colour Sequence Compare

Product number 5068826

Product name Fanout SM 4xSC/UPC-APC-UPC-APC G657A 0.8+1.2m=2.0m S12 code

Connector Type sc/upc & sc/apc

Fibre Count 4

Fibre Colour Sequence EIA/TIA-598A

Product number 5068827

Product name Fanout SM 4xSC/UPC-UPC-APC-APC G657A 0.8+1.2m=2.0m S12 code

Connector Type sc/upc & sc/apc

Fibre Count 4

Fibre Colour Sequence S12

Product number 5068828

Product name Fanout SM 4xSC/UPC G657A 2m G657A 0.8+1.2m=2.0m S12 code

Connector Type SC/UPC

Fibre Count 4

Fibre Colour Sequence S12

Product number 5068829

Product name Fanout SM 8xSC/UPC G657A 2m G657A 0.8+1.2m=2.0m S12 code

Connector Type SC/UPC

Fibre Count 8

Fibre Colour Sequence S12

Product number 5068830

Product name Fanout SM 12xSC/UPC G657A 2m G657A 0.8+1.2m=2.0m S12 code

Connector Type SC/UPC

Fibre Count 12

Fibre Colour Sequence S12 & EIA/TIA-598A

Product number 5068831

Product name Fanout SM 4xSC/APC G657A 2m G657A 0.8+1.2m=2.0m S12 code

Connector Type SC/APC

Fibre Count 4

Fibre Colour Sequence S12

Product number 5068832

Product name Fanout SM 8xSC/APC G657A 2m G657A 0.8+1.2m=2.0m S12 code

Connector Type SC/APC

Fibre Count 8

Fibre Colour Sequence S12

Product number 5068833

Product name Fanout SM 12xSC/APC G657A 2m G657A 0.8+1.2m=2.0m S12 code

Connector Type SC/APC

Fibre Count 12

Fibre Colour Sequence S12 & EIA/TIA-598A

Product number 5068834

Product name Fanout SM 4xLC/UPC G657A 2m G657A 0.8+1.2m=2.0m S12 code

Connector Type LC/UPC

Fibre Count 4

Fibre Colour Sequence S12

Product number 5068835

Product name Fanout SM 8xLC/UPC G657A 2m G657A 0.8+1.2m=2.0m S12 code

Connector Type LC/UPC

Fibre Count 8

Fibre Colour Sequence S12

Product number 5068836

Product name Fanout SM 12xLC/UPC G657A 2m G657A 0.8+1.2m=2.0m S12 code

Connector Type LC/UPC

Fibre Count 12

Fibre Colour Sequence S12 & EIA/TIA-598A

Product number 5068837

Product name Fanout SM 4xLC/APC G657A 2m G657A 0.8+1.2m=2.0m S12 code

Connector Type LC/APC

Fibre Count 4

Fibre Colour Sequence S12

Product number 5068838

Product name Fanout SM 8xLC/APC G657A 2m G657A 0.8+1.2m=2.0m S12 code

Connector Type LC/APC

Fibre Count 8

Fibre Colour Sequence S12

Product number 5068839

Product name Fanout SM 12xLC/APC G657A 2m G657A 0.8+1.2m=2.0m S12 code

Connector Type LC/APC

Fibre Count 12

Fibre Colour Sequence S12 & EIA/TIA-598A

Product number 5069977

Product name Fanout SM 2xSC/UPC G657A 2m G657A 0.8+1.2m=2m STD

Connector Type SC/UPC

Fibre Count 2

Fibre Colour Sequence EIA/TIA-598A

Product number 5069978

Product name Fanout SM 2xSC/APC G657A 2m G657A 0.8+1.2m=2.0m STD

Connector Type SC/APC

Fibre Count 2

Fibre Colour Sequence EIA/TIA-598A
