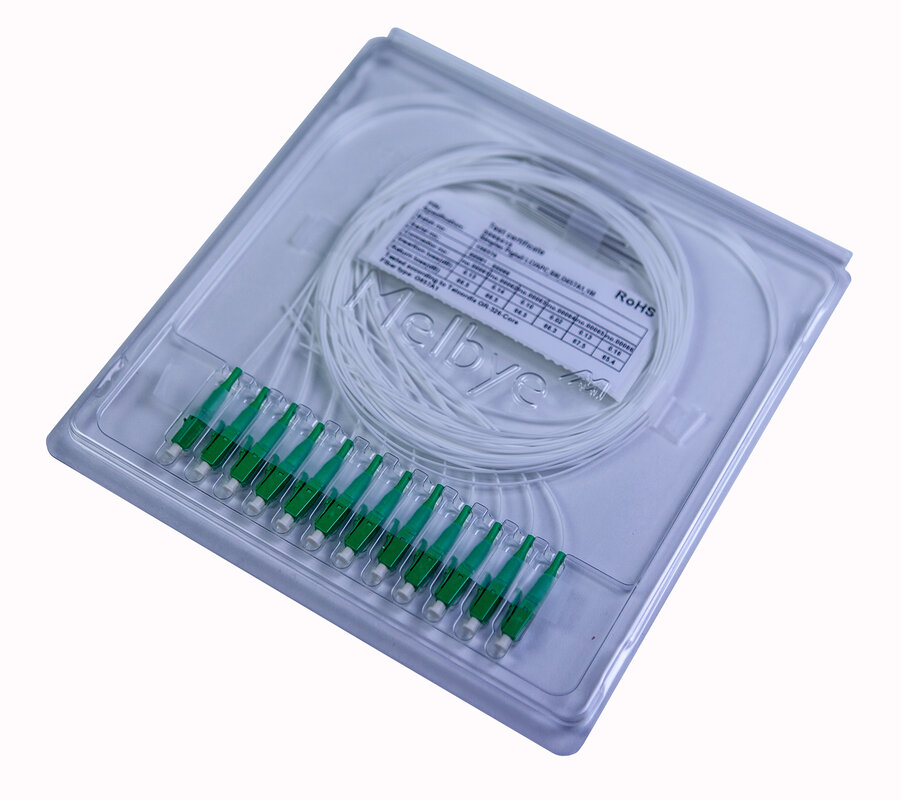

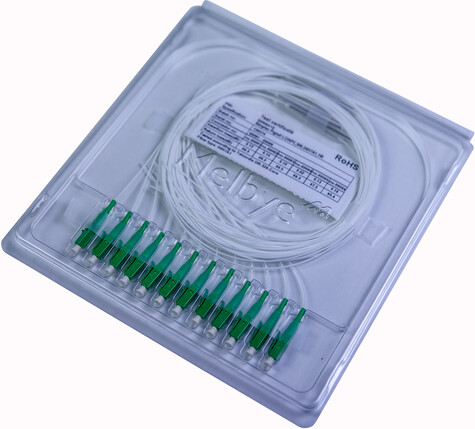

Pigtail SM LC/APC 1.0m 12-Pack G657A White 900µm LSZH
| Product code | 5068415 | |
|---|---|---|
| Sales unit | Pack | |
| ETIM-Class | EC000748 |
-
Product specifications
Fibreoptic pigtail, singlemode G657A1 900µm with one pre- terminated connector. To be used for splicing on a fibreoptic cable. Halogen-free according to EN 60754-1/2 and flame retardant according to IEC 60332-2-2. Meets the requirements of IEC 61300, EN186000-1, EIA/TIA-455 and TELCORDIA GR-326-CORE/GR-63. ID marked with a unique serial number for full traceability to component-level. Each package comes with individual measurement protocols. With pre-mounted 45 mm heat shrink sleeves.
-
Measurements
Length 182 mm Height 15 mm Width 190 mm Weight 86 g -
Documents
Data Sheets
-
Technical Specifications - Connectors
Max insertion loss per connector (APC) 0.3 dB Max Optical Return Loss for APC connector -65 dB Radius of Curvature APC 7-12 mm Max Vertex Offset 50 µm Fibre Protrusion (nm) 0 +/- 50 nm -
Technical Specifications - Pigtails
