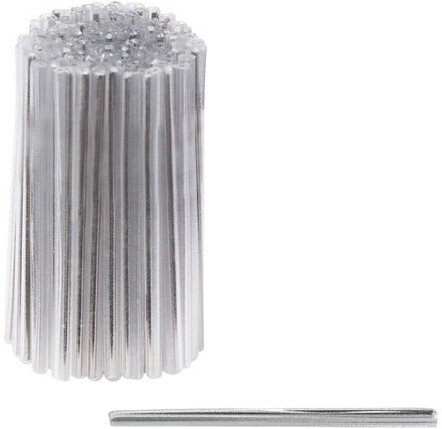

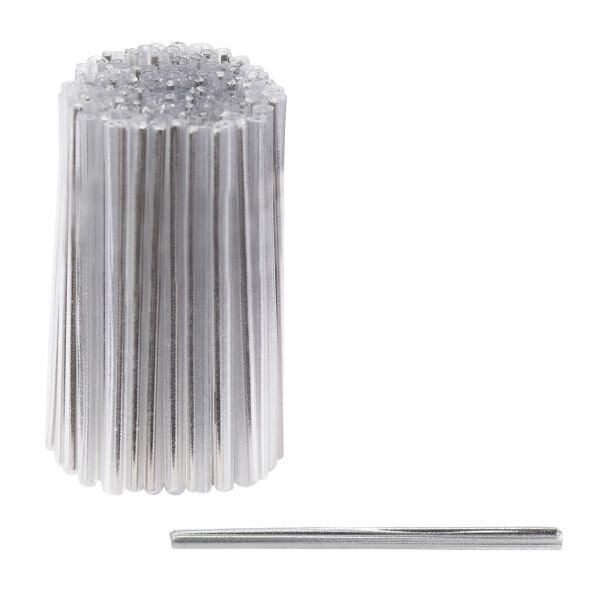

Heat shrink sleeves 25mm. 250um fiber, 100pcs/bag

Product code	5057615
Count	1
Sales unit	Pcs
ETIM-Class	EC001123

Compare

Product specifications

High-quality sleeves with glue and very good melting properties for protection of fiber optic fusion splices. Made up by crosslinked polyolefin, hot fusion tubing steinless reinforced steel rod.

Weight	0.1 g

Documents

Data Sheets

5057615-FDV.pdf

Specifications - Splice Protection Sleeves

Sleeve Type	Single Fibre
Length	25 mm
Thickness After Shrinking	1.3 mm
Conforming Standard	telcordia gr-1380-core
Shrinking temperature	+90 - +110 °C
Operating temperature	-45 - +100 °C

Other variants

Product number Product name Length Thickness After Shrinking Compare

Product number 5057615

Product name Heat shrink sleeves 25mm. 250um fiber, 100pcs/bag

Length 25 mm

Thickness After Shrinking 1.3 mm

Product number 5057616

Product name Heat shrink sleeves 25mm. 250/900um fiber, 100pcs/bag

Length 25 mm

Thickness After Shrinking 2.4 mm

Product number 5057617

Product name Heat shrink sleeves 40mm. 250/900um fiber, 100pcs/bag

Length 40 mm

Thickness After Shrinking 2.4 mm

Product number 5057618

Product name Heat shrink sleeves 45mm. 250/900um fiber, 100pcs/bag

Length 45 mm

Thickness After Shrinking 2.4 mm

Product number 5057619

Product name Heat shrink sleeves 60mm. 250/900um fiber, 100pcs/bag

Length 60 mm

Thickness After Shrinking 2.4 mm

Product number 5057670

Product name Splice protection sleeve 40mm 250-900µm fiber , 200pcs/bag

Length 40 mm

Thickness After Shrinking 2.8 mm

Product number 5057672

Product name Splice protection sleeve 60mm 250-900µm fiber , 200pcs/bag

Length 60 mm

Thickness After Shrinking 2.8 mm
